Description

General description

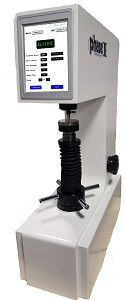

The 900-410 Digital Rockwell Hardness Tester can be used directly to measure the most popular regular Rockwell hardness scales and it can quickly convert that hardness value into HB, HV, HLD, HK and many other scales. Loaded with many useful features such as ultra precise results, wide measuring range, scale and test force selectable, automatic main test force loading/unloading, high resolution digital display and USB data storage. The 900-410 rockwell hardness tester is suitable for testing hardness of carbon steel, alloy steel, cast iron, non-ferrous metals and engineering plastics. This rockwell hardness tester meets the following standard: ASTM E18 and ISO 6508-2.This rockwell hardness tester comprises the very best in “state of the art” design along with dynamic precision only found at Phase II. The 900-410 Rockwell scale hardness tester is easy to operate, yet engineered to obtain highly sensitive and accurate readings. Conforming to ASTM E-18 Rockwell Hardness standards, the 900-410 rockwell hardness tester will offer unmatched repeatability in all standard Rockwell Hardness scales (table shown below). A perfect, rugged performer suited for any environment including heat treat facilities, tool rooms, workshops, laboratories and inspection labs. Lifetime technical support is included on all Phase II Hardness Testers. So test away with confidence and a level of accuracy you will only find at Phase II.

Key performance parameters

• Preload： 98.1N（10kgf）
• Total test force： 588.4N(60kgf)，980.7N(100kgf)，1471N(150kgf),
• Scales： HRB，HRC，HRD，HRE，HRF，HRG，HRH，HRK, HRE, HRL，HRM，HRP，HRR，HRS，HRV
• Load dwell duration： 2～50s
• Resolution ： 0.1HR
• Display： High definition backlight LCD
• Operation： Menu selectable push buttons
• Auxiliary functions Upper/lower limits setting & alarm, Scale conversions: HV & HB
• Data output: USB memory stick
• Testing Capacity： Vertical: 8.00” Throat Depth: 7.87”
• Dimensions： Height: 22.04” Width: 8.07” Depth: 31.49” (560mm×205mm×800mm)
• Power supply： single phase, AC, 110V, 50～60Hz, 4A
• Gross weight: 175lbs (80kg)

Included Accessories:

• A. Large Anvil
• B. Small Diameter Anvil
• C. V-shaped Anvil
• D. Five Test Blocks
• 1. One each, HRB 75-95
• 2. One each, HRC 25-35
• 3. One each, HRC 40-50
• 4. One each, HRC 55-65
• E. 120 deg. Diamond Indentor
• F. 1/16″ Carbide Ball indentor
• G. Storage Box
