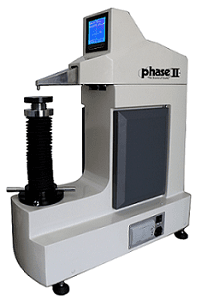

Digital Rockwell/Superficial Rockwell Hardness Tester-Digital Rockwell Hardness Testing

$12,369.00

Description



Test Rockwell and Superficial Rockwell hardness in 1 Unit! Model No. 900-384

Hardness Tester Features:

The hardness test force is applied via a closed-loop control unit with a load cell, a DC motor and an electronic measurement and control unit that replace traditional dead weights. The result is highly accurate hardness test measurements at all test loads up to 0.5%. Simple plug – and – play tech allows for much more quick and easy installation than traditional dead weight type machines. Extended dolphin nose allows vertical hardness test height of 11.8” and throat depth of 8.6”. Built-in micro-printer.

Hardness Tester Basic Functions:

  • Twin hardness tester –Regular Rockwell & Superficial Rockwell hardness test for metal and plastic material.
  •  Horizontal dolphin nose Indenter is suitable for internal and external hardness testing.
  •  Rockwell Hardness Testing on Surfaces difficult to reach. Hardness Testing internal surface of rings and tubes.
  •  Provided with many features such as high measuring precision, wide measuring range with 30 Rockwell hardness scales.
  • The Rockwell hardness tester is suitable for testing of carbon steel, alloy steel, cast iron, non-ferrous metal.
  • Measuring results digitally displayed and can be printed with its built-in thermal Mini-Printer.
  • Test Rockwell hardness values can be converted to the value of HB, HV, HK and σb value.
The rockwell hardness tester meets the following standards: ISO 6508-2, ASTM E18.
900-384-screen-1 900-384-screen-2
  Hardness Tester Parameters:
  • Preload 4N(3kgf), 98.1N (10kgf)
  • Total test force 1N(15kgf), 294.3N(30kgf), 441.3N(45kgf), 588.4N (60kgf), 980.7N (100kgf), 1471N (150kgf)
  • Scales HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X,  HR15Y, HR30Y, HR45Y, HRA,HRB,HRC,HRD,HRE,HRF, HRG,HRH,HRK,HRL,HRM,HRP, HRR, HRS,HRV
  • Load dwell duration 2~50s, can be set and stored
  • Resolution 1HR
  • Display High definition backlight LCD
  • Operation Menu selectable, Membrane keypad
  • Upper/lower limits setting & alarming
  • Data statistics , Max., Min., S, R
  • Curved surface auto correction
  • Memory: 400 test results stored automatically
  • Testing Capacity Vertical: 11.8” (300mm) , Depth: 8.6” (220mm)
  • Dimensions 690mm×280mm×860mm
  • Power supply AC, 220V/110V, 50~60Hz, 4A (convertible)
  • Net weight 86 kg (190lbs)
  • Gross weight: 120kg (265 lbs)
900-384-sub-1 900-384-sub-2

Included Accessories:

Standard hardness block for B scale 1
Standard hardness block for C scale 2
Standard hardness block for N scale 2
Standard hardness block for T scale 1
ball indenter (1/16″) 1
120°cone diamond indenter 1
Mounting screws for indenter 2
Flat anvil 1
“V” shape anvil 1
Power supply cord 1
Screwdriver for indenter mounting 1
Dust cover 1

Additional information

Weight 200 lbs
Model No.

900-384
