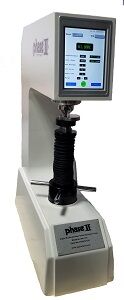

Features: Model No. 900-415 Rockwell Hardness Tester
This digital Rockwell hardness tester with fully automated load/unload procedures affords highly sensitive and accurate readings. Micro computer controlled Touch Screen with USB output to flash drive. The 900-415 digital Rockwell hardness tester offers programmable scale hardness conversions, dwell times, statistical capabilities and test counter. Capable of testing in all of the regular Rockwell hardness scales.This hardness tester comprises the very best in “state of the art” design along with dynamic precision only found at Phase II. The 900-415 Rockwell scale hardness tester is easy to operate, yet engineered to obtain highly sensitive and accurate readings. Conforming to ASTM E-18 Rockwell Hardness standards, the 900-415 rockwell hardness tester will offer unmatched repeatability in all standard Rockwell Hardness scales (table shown below). A perfect, rugged performer suited for any environment including heat treat facilities, tool rooms, workshops, laboratories and inspection labs. Lifetime technical support is included on all Phase II Hardness Testers. So test away with confidence and a level of accuracy you will only find at Phase II.
Direct Loading Method With Load-Cell Instead Of Dead Weight System. High Speed Test Cycle and Extremely Accurate Loading Control
Automatic hardness conversions to HB, HV, Superficial Rockwell Scales
Touch Screen selectable system
Upper/Lower Limit Settings
Specifications:Rockwell Hardness Tester
Minor Load
10 Kgf
Major Load
60 Kgf, 100 Kgf, 150 KGF
Test Force Application
Load Cell Closed Loop
Test Force Control
Motorized
Results Display
Hi Def LCD Digital Readout
Resolution
0.01HR
Vertical Capacity
8.0”
Throat Depth
7.8”
Height
22”
Width
8”
Depth
31”
Weight
175 lbs
Accessories: Included
C-scale Diamond Indenter
1/16” Ball Indenter
3- HRC test Blocks
1- HRB Test Block
Test Table 5.87” (150mm)
Flat Anvil 2.5” (63mm)
Std. V- Anvil
Dust Cover
Accessory Case
Test resolution: 0.01HR Rockwell unit;
Operation temperature: 50° – 95°F (10ᵒC~35ᵒC)
Ambient environment: clean, no vibration, no strong magnetic field, and no corrosive medium;
Power supply: single phase, AC, 110-220 with manual change, 50~60Hz, 4A;
Additional information
Weight
200 lbs
Model No.
900-415
