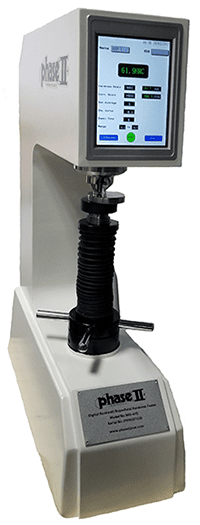

Rockwell/Superficial Rockwell Hardness Tester-Twin Digital Hardness Tester

$11,244.00

Description



Model No. 900-440 Load Cell, Closed Loop, TWIN Rockwell Hardness Tester! Cast Iron Body! w/Touch Screen Functions

Features: Model No. 900-440 TWIN Rockwell/Superficial Rockwell Hardness Tester

This digital Rockwell hardness tester with fully automated load/unload procedures affords highly sensitive and accurate readings. Micro computer controlled Touch Screen with USB output to flash drive. The 900-440 digital Rockwell hardness tester offers programmable scale conversions, dwell times, statistical capabilities and test counter. This hardness tester comprises the very best in “state of the art” design along with dynamic precision only found at Phase II. The 900-440 Rockwell scale hardness tester is easy to operate, yet engineered to obtain highly sensitive and accurate readings. Conforming to ASTM E-18 Rockwell Hardness standards, the 900-440 rockwell hardness tester will offer unmatched repeatability in all standard & superficial Rockwell Hardness scales. A perfect, rugged performer suited for any environment including heat treat facilities, tool rooms, workshops, laboratories and inspection labs. Lifetime technical support is included on all Phase II Hardness Testers. So test away with confidence and a level of accuracy you will only find at Phase II. Capable of hardness testing in all of the regular Rockwell and Superficial Rockwell hardness scales.

Direct Loading Method With Load-Cell Instead Of Dead Weight System. High Speed Test Cycle and Extremely Accurate Loading Control

  • Automatic conversions to HB, HV, Popular Rockwell Scales
  • Touch Screen selectable system
  • Upper/Lower Limit Settings
  • Test resolution: 0.01HR Rockwell unit;
  • Operation temperature: 50° – 95°F (10ᵒC~35ᵒC)
  • Ambient environment: clean, no vibration, no strong magnetic field, and no corrosive medium;
  • Power supply: single phase, AC, 110-220 with manual change, 50~60Hz, 4A;
Minor Load 3kgf / 10 Kgf
Major Load 60 Kgf, 100 Kgf, 150 KGF, 15KGF, 30KGF, 45KGF
Test Force Application Load Cell Closed Loop
Test Force Control Motorized
Results Display Hi Def LCD Digital Readout
Resolution 0.01HR
Vertical Capacity 8.0”
Throat Depth 7.8”
Height 22”
Width 8”
Depth 31”
Weight 175 lbs

Accessories: Included

    C-scale Diamond Indenter
  • 1/16” Ball Indenter
  • 2- HRC test Blocks
  • 1- HRB Test Block
  • 1-HRN Test Block
  • Test Table 5.87” (150mm)
  • Flat Anvil 2.5” (63mm)
  • Sli. V- Anvil
  • Dust Cover
  • Accessory Case

Additional information

Weight 200 lbs
Model No.

900-440
