TALL ROCKWELL HARDNESS TESTER

$4,832.00

Description

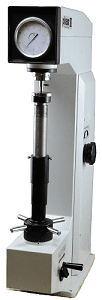

ROCKWELL HARDNESS TESTER – tall frame

Model No. 900-332

This rockwell hardness tester comprises the very best in “state of the art” design along with dynamic precision only found at Phase II. The 900-332 Rockwell hardness tester is easy to operate, yet engineered to obtain highly sensitive and accurate readings. Conforming to ASTM E-18 Rockwell Hardness standards, the 900-332 hardness tester will offer unmatched repeatability in all standard Rockwell Hardness scales (table shown below). A perfect, rugged performer suited for any environment including heat treat facilities, tool rooms, workshops, laboratories and inspection labs. Lifetime technical support is included on all Phase II Hardness Testers. So test away with confidence and a level of accuracy you will only find at Phase II.

Rockwell Hardness Tester Features
  • 15 3/4″ Test height for extremely large parts
  • Direct analog dial reading
  • Advanced design, easy to operate
  • Engineered to obtain highly sensitive and accurate readings


Rockwell Hardness Tester Specifications:

Minor Load 10Kgf
MajorLoad 60Kgf, 100Kgf, 150Kgf
Test Force Application Dead Weight
Test Force Control Hydraulic Dashpot System
Results Display Analog Dial Gage
Vertical Capacity 15-3/4″ in.
Throat Depth 5.5 in.
Height 33.0 in.
Width 18.0 in.
strong> Depth 70.0 in.
Shipping Weight 200 lbs.
Accessories:
  • C-scale Diamond Indentor
  • 1/16″ Ball Indentor
  • 1- HRB Test Block
  • 1-HRA Test Block
  • Test Table 5.87″ (150mm)
  • Flat Anvil 2.5″ (63mm)
  • Std. Vee Anvil
  • Accessory Case
Options:

Additional information

Weight 200 lbs
