Description

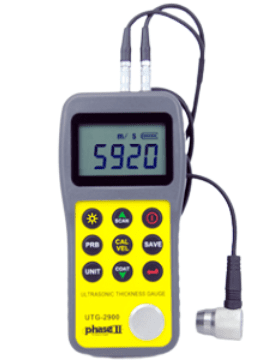

Our new State of the art, digital ultrasonic thickness gauge/thickness gage is packed with features typically found on high end models only. This multi-functional ultrasonic thickness gauge/thickness gage offers everything from basic ultrasonic thickness measurement, Thru Coating capabilities, Scanning Capabilities, Adjustable Sound Velocity, extended memory and USB output capabilities. This dynamic ultrasonic thickness gauge/thickness gage is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, glass and any other good ultrasonic wave conductor as long as it has parallel top and bottom surfaces. The UTG-2900 ultrasonic thickness gauge/thickness gage will accurately display readings in either inch or millimeter after a simple calibration to a known thickness or sound velocity. The UTG-2900 ultrasonic thickness gauge/thickness gage is extremely easy to use. After a simple calibration to a known thickness or sound velocity, the gauge will give accurate readings in inches or millimeters. Ultrasonic Wall Thickness Gauge Measurement, The use of Ultrasonic non-destructive testing (NDT) to check material properties such as thickness measurement, is now extensively used in all facets of industry. The ability to gauge thickness measurement without requiring access to both sides of the test piece, offers this technology a multitude of possible applications. Metals, plastics, ceramics, glass and other materials can easily be measured by portable ultrasonic thickness gauges/thickness gages with a common accuracy of.001″. Ultrasonic thickness gauges/thickness gages measure the thickness of a part by measuring the time sound travels from the transducer through the material to the back end of a part, and then measures the time of reflection back to the transducer. The ultrasonic thickness gauge then calculates the thickness based on the velocity of sound through the material being tested. A broad variety of piezoelectric transducers, operating at given frequencies are utilized to generate sound when excited. Typically, a 5mhz frequency is standard on all Phase II Ultrasonic Thickness Gauges/thickness gages. Optional transducers are always available for a myriad of applications. The direct contact method of pulse/echo type ultrasonic thickness gauges requires use of a couplant. Propylene Glycol is common, but many other substances can be used. Easy to configure and use, many ultrasonic thickness gauges today have the ability to retain memory, output to printers, PC’s, and handheld portable devices. With the combination of an easy menu driven ultrasonic thickness gauge and the data in memory, technician/operators have a world of technology at their fingertips to obtain highly accurate and cost effective measurements for all types of thickness applications. UTG-2900 ultrasonic thickness gauge comes complete with Base Instrument, 5MHz Echo-Echo Probe, 2oz Bottle of couplant gel, Data Output Software, USB Cable, Certificate of Calibration, Operation Manual and Custom Carry Case.
Specifications:
Model No. UTG-2900 | |
Display type | 4.5 -digit LCD w/Back Light |
Minimum display unit | 0.001”/0.01mm (selectable) |
Measuring Range | Pulse-Echo: 0.025”-23.0” in steel Echo-Echo: 0.118” – 2.35” |
Accuracy | +/- (0.5% thickness + .001”) |
Sound velocity range | 3280-32805 ft/s (1000-9999m/s) |
Scanning Feature | Yes, 16 measurements/second |
Operating temperature | 32-122 degrees F |
Frequency | 5MHz |
Update range | 4Hz |
Memory | 20 Groups (100 files/group) |
Output | USB |
Power supply | AA alkaline batteries (2pc) |
Battery life | Approx. 100 hours (w/backlight off) |
Power consumption | Working current is less than 3V |
Dimensions | 5.90” x 2.91” x 1.30” (150 x 74 x 33mm) |
Weight | 8.6oz (245g) |
