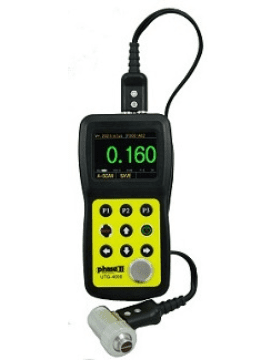

Ultrasonic Thickness Gauge w/A & B Scan, Thru Coating Capability, Memory, Output & Software

$1,547.00

Description



Utilizing color waveform A-scan and time based B-scan for absolute correctness, this new state of the art ultrasonic thickness gauge is packed with useful features allowing users to be confident of the displayed values on the most critical of applications. This multi-functional ultrasonic thickness gauge offers everything from basic measurement, Scan mode with Min/Max viewing, GO/NO GO display, Adjustable Sound Velocity and Thru-Coating Capabilities. This dynamic ultrasonic thickness gauge is designed to measure the thickness of metallic and non-metallic materials in critical situations that ordinary thickness gauges couldn’t do.

State of the art, digital ultrasonic thickness gauge is packed with features typically found on high end models only. This multi-functional ultrasonic thickness gauge offers everything from basic measurement, Scanning Capabilities, Adjustable Sound Velocity, extended memory and USB output capabilities. This dynamic ultrasonic thickness gauge is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, glass and any other good ultrasonic wave conductor as long as it has parallel top and bottom surfaces. The UTG-4000 ultrasonic thickness gauge will accurately display readings in either inch or millimeter after a simple calibration to a known thickness or sound velocity.

The UTG-4000 ultrasonic thickness gauge is extremely easy to use. After a simple calibration to a known thickness or sound velocity, the gauge will give accurate readings in inches or millimeters. Ultrasonic Wall Thickness Gauge Measurement, The use of Ultrasonic non-destructive testing (NDT) to check material properties such as thickness measurement, is now extensively used in all facets of industry. The ability to gauge thickness measurement without requiring access to both sides of the test piece, offers this technology a multitude of possible applications. Metals, plastics, ceramics, glass and other materials can easily be measured by portable ultrasonic thickness gauges with a common accuracy of.001″. Ultrasonic thickness gauges measure the thickness of a part by measuring the time sound travels from the transducer through the material to the back end of a part, and then measures the time of reflection back to the transducer. The ultrasonic thickness gauge then calculates the thickness based on the velocity of sound through the material being tested. A broad variety of piezoelectric transducers, operating at given frequencies are utilized to generate sound when excited. Typically, a 5mhz frequency is standard on all Phase II Ultrasonic Thickness Gauges. Optional transducers are always available for a myriad of applications. The direct contact method of pulse/echo type ultrasonic thickness gauges requires use of a couplant. Propylene Glycol is common, but many other substances can be used. Easy to configure and use, many ultrasonic thickness gauges today have the ability to retain memory, output to printers, PC’s, and handheld portable devices. With the combination of an easy menu driven ultrasonic thickness gauge and the data in memory, technician/operators have a world of technology at their fingertips to obtain highly accurate and cost effective measurements for all types of thickness applications.

The UTG-4000 ultrasonic thickness gauge will accurately display readings in either inch or millimeter after a simple calibration to a known thickness or sound velocity.

Specifications: UTG-4000 ultrasonic thickness gauges

Operating Principle Ultrasonic Pulse/Echo and Echo to Echo method with dual element probe
Display type 2.4” Color Screen
Resolution 0.001”, .01” /0.01mm (Inch/Metric selectable)
Measuring Range Standard Mode: 0.02-20.0”   Dependant upon probe & material Thru-Coating Mode (E-E): 0.09” to 0.984”
Repeatability +/-.001”    (+/-0.05mm)
Sound velocity range 0.0197-0.3937in/us   (500-9999m/s)
Measuring Error: 0.001”(up to 0.984”) 0.007”(up to 3.03” 0.019”( 4” and above)
Display Modes: Digital Thickness Readout A-scan or B-scan Min/Max Capture Diff-Value / Reduction
V-Path Correction Automatic
Update Rate Selectable: 4Hz, 8Hz, 16Hz
Refresh rate 4/second
Alarm Settings Min/Max Alarm Dynamic waveform color change on alarm
Operating temperature 14-122ºF    (-10ºC – +50ºC)
Auto Shut-Off After 5 minutes
Power supply 3v AA alkaline batteries (2pc)
Operating Time Approx. 36 hours
Dimensions 6.02” x 2.99” x 1.45”   (153 x 76 x 37mm)
Weight 9.9oz    (280g)

Additional information

Weight 6 lbs
Dimensions 12 × 10 × 6 in
