This brinell hardness tester optical scan system, Includes the basic functions of an imaging system such as image capture, camera calibration, image processing, geometric measurement,
document labeling, and album management; automatically or manually measures the indentation diameter and calculates the hardness HBW
value; HB2 (DIN 1605 standard) automatic brinell hardness measurement: Automatically or manually measures the indentation diameters on the calibration
sample and the test sample, and automatically interpolates the HBW value for the test sample; Converts HBW to other hardness scales—Validates the
brinell hardness test results with sample dimensions; automatically updates the statistical values such as average, min and max, standard deviation,Cp and Cpk;
Auto-alarm: Automatically marks the out of spec measurements; Test report: Automatically generates customizable WORD or EXCEL report.
Features:
Friendly User Interface: Automatic brinell hardness measurement with a key stroke or a
click of a button;Test results can be manually generated or corrected
with a single mouse drag move
High reliability: Advanced image processing and analysis technologies
in automatic measurement. Field proven under severe sample surface
conditions;

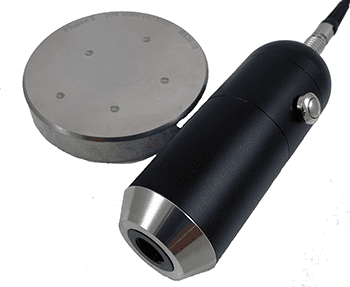

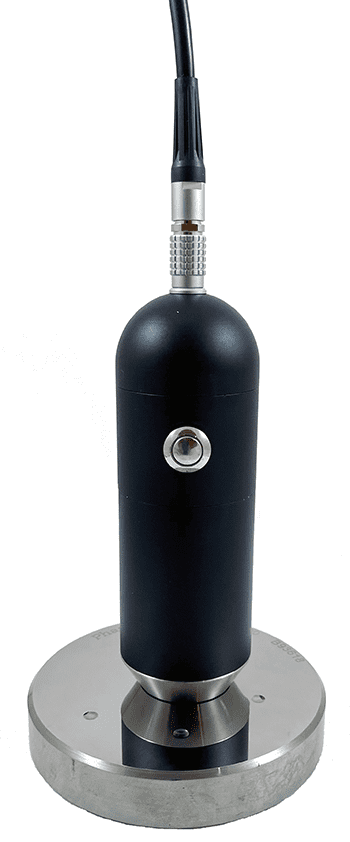

Single camera with four magnifications: 1.3M pixel CMOS USB camera
with two camera tubes with each tube height having two magnifications.
Full measurement range is covered with four magnifications for better
measurement accuracy. Specifically, tube 1 magnification #1 is suitable
for indentation diameters 3-6mm, magnification #2 for 0.8-1.6mm,
while tube 2 magnification #3 for 2-4mm, and magnification #4 for
1-2mm. Four magnifications: For better
measurement accuracy, the system
provides two caps, i.e, two distances
between sample and camera sensor,
thus four magnifications to cover the
Brinell indentation ranging from
1.2mm to 6.0mm. The 75mm cap
provides magnification #1 that covers
indentation diameters from 3 to 6mm
(with indentation image between half
and full image frame size), and
magnification #2 from 0.8mm to 1.6mm. The 70mm cap provides magnification #3 that covers from 2 to 4mm and magnification #4 from 1 to 2mm. User may decide and change to either one of the 4 magnifications according the measured indentation size. If not specified, the system is shipped at the most often used magnification #3 (2-4mm).

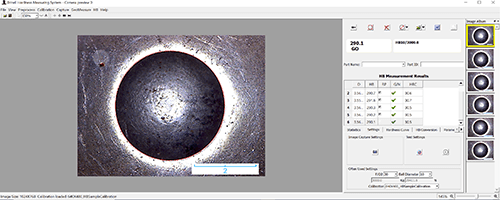

Measure: If the camera is still (e.g, after a measurement), push the camera button, or press the Space key on the keyboard, or click on the Video Preview button to start camera preview. Move the camera or the sample to make the indentation appear in the middle of the preview. Make the measurement as described above. Correct the measurement: If correction of measurement is needed, mouse press and drag the label circle (in case of Measure by circle) or the four vertices (in case of Measure by major-minor axes) to align the label with the indentation, and release. Measurement value and statistics etc will update automatically.
