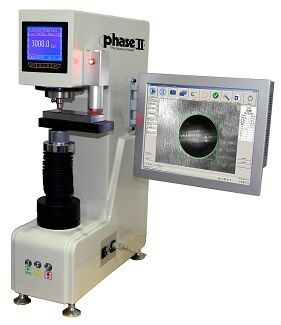

AUTOMATIC Brinell Hardness Tester w/Auto Z Axis!

$16,869.00

Description



Model No. 900-359 Innovative closed-loop technology. The Brinell hardness tester incorporates the latest load cell technology. The test load is applied via a closed-loop control unit with a load cell, a DC motor and an electronic measurement and control unit. The result is highly accurate Brinell hardness measurements at all test loads up to 0.5%. The common load overshoot or undershoot as known from traditional dead weight, or open-loop, systems is eliminated. The absence of mechanical weights not only eliminates friction problems but also makes the equipment less sensitive to misalignments caused by vibrations

FEATURES:

Fully automated test cycles. Press the START key once, the Brinell hardness tester will complete the entire test cycle automatically—1)sample elevation 2)major load application 3)Dwell Time 4) Unloading.
  • Equipped with CCD camera and built-in touch screen PC performs the indentation measuring process automatically.
  • Hardness Measurement software includes useful functions. a) Single and batch testing mode b) Tolerance setting w/alarm c) Statistic values such as Max, Min, Avg, R and S are selectable d) Convert test result to other hardness scales, such as HRC,HRB,HRA,HV,σb.
  • All hardness test results and indention images are saved automatically
  • Test report created in Microsoft EXCEL format, can be edited, copied or printed.
  • Load Cell driven system provides precise control of hardness test force application
  • Direct digital reading
  • Engineered to obtain highly sensitive and accurate hardness readings
  • Perfect for laboratories, workshops, tool rooms, inspection labs, etc.
  • Measuring Range: 8-650HBW
  900-359a

Specification:

  • The gross weight of the Brinell Hardness tester is 50% less than the traditional dead weights type tester.
  • Test load selection by keyboard and LCD screen.
900-359b

Technical Data:

    • Loads:3000kgf (29400N), 1500Kgf (14700N), 1000Kgf (9800N), 750Kgf(7355N),500Kgf (4900N),
250Kgf (2452N), 187.5Kgf (1839N), 125Kgf (1226N),100Kgf (980N), 62.5Kgf(612.9N)
  • Load dwell duration: 2s~99s, can be set and stored
  • Tungsten Carbide Ball indenter: 10mm, 5mm, 2.5mm
  • Measuring range: 3.18HBW~ 658HBW
  • Max Weight Capacity for Z-Axis: 330 lbs (150kg)
  • Max measurable height: 230 mm
  • Max measurable depth: 140 mm
  • Dimensions: 530mm×260mm×750mm
  • Power supply: 220/110 V, 50/60 Hz, 4A
  • Weight: 110kg

Additional information

Weight 300 lbs
Model No.

900-359
