Description
Price: $6,995.00
Please call 855-320-1010 for shipping costs

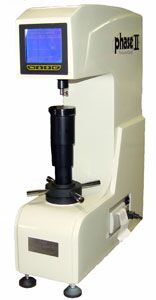

DIGITAL ROCKWELL HARDNESS TESTER
Model No. 900-365
This digital Rockwell hardness tester with fully automated load/unload procedures affords highly sensitive and accurate readings. Micro computer controlled with USB output to built-in mini printer or PC. The 900-365 digital Rockwell hardness tester offers programmable scale conversions, dwell times, statistical capabilities and test counter. Capable of testing in all of the regular Rockwell® scales.
Automatic conversions to: HRN, HRT, HB, HV, HLD and σb.
Features:
- Easily obtain Average, Min/Max, S, R
- Menu selectable system
- Upper/Lower Limit Settings
- Memory of 500 test results
- Curved Surface Auto Correction
Specifications:
| Minor Load |
10Kgf |
| MajorLoad |
60Kgf, 100Kgf, 150Kgf |
| Test Force Application |
Dead Weight |
| Test Force Control |
Motorized |
| Results Display |
Hi Def LCD Digital Readout |
| Resolution |
0.1HR |
| Memory/Output |
500 Tests/USB . |
| Vertical Capacity |
7.87″ |
| Throat Depth |
6.50″ |
| Height |
28.34″ |
| Width |
7.87″ |
| Depth |
21.60″ |
Standard Accessories:
- 3 piece-HRC test blocks
- 1 piece-HRB test block
- 1 piece-HRA test block
Accessories:
- C-scale Diamond Indenter
- 1/16″ Ball Indenter
- 2- HRC test Blocks
- 1- HRB Test Block
- Built-in Mini Printer
- Test Table 5.87″ (150mm)
- Flat Anvil 2.5″ (63mm)
- Std. Vee Anvil
- Accessory Case
- Dust Cover
Options:
The 900-365 digital Rockwell hardness tester comes complete with everything needed to test in the following Rockwell Scales: A, B, C, D, F, G.
Other Rockwell Scales can be achieved with optional indentors!
Key performance parameters
- Preload： 98.1N（10kgf）
- Total test force： 588.4N(60kgf)，980.7N(100kgf)，1471N(150kgf),
- Scales： HRA，HRB，HRC，HRD，HRE，HRF，HRG，HRH，HRK，HRL，HRM，HRP，HRR，HRS，HRV
- Conversions: The 900-365 digital Rockwell hardness tester can convert the measured Rockwell hardness value to other scales or even tensile strength. Example: the value of HRA scale can be automatically converted into HBS, HBW, HV and HK value; Convert the value of HRB scale into HB10, HB30, HV, HLD, σb and HK value; Convert the value of HRC scale into HBS, HBW, HV, HLD, HR15N, HR30N, σb and HK value; Convert the value of HRD scale into HV, HK, HB value; Convert the value of HRE scale into HV, HK, HB value; Convert the value of HRF scale into HV, HB value.
- Load cycle： 3～8s
- Load dwell duration： 2～50s
- Resolution ：0.1HR
- Display：High definition backlight LCD
- Operation：Menu selectable, Membrane keypad
- Auxiliary functions：Upper/lower limits setting& alarming,
Data statistics, Avg., Max., Min., S, R,
Scale conversion, HV, HB, σb, etc.
Curved surface Auto Correction
- Data output: Print out, or output to PC through USB port
- Memory: Max 500 items of test results stored automatically
- Testing Capacity：Vertical: 7.87” Throat Depth: 6.50”
- Dimensions：Height: 28.34” Width:7.87” Depth: 21.60” (550mm×200mm×720mm)
- Power supply: single phase, AC, 110V, 50～60Hz, 4A
- Net weight：220 lbs (100kg)
- Shipping Weight: approx. 300 lbs
| Test parameter setting |
|
 |
 |
| Load dwell setting |
|
|
|
| Limit setting |
|
 |
|
| Data statistics |
|
|
|
| Scale conversion |
|
|
|
| Browse through/print from memory |
|
|
|
| Testing: Preload |
|
|
|
| Automatic testing |
|
|
|
|
|
|
|
Features:
