rockwell hardness test blocks steel, steel rockwell hardness test blocks

Rockwell Hardness Test Blocks Steel /Steel Rockwell Hardness Test Blocks/NIST Certified

SKU: N/A Category:

Description

Hardness Test Blocks & Accessories

Hardness Test Blocks & Accessories

  • Phase II offers a vast array of different hardness test blocks for Rockwell, Brinell and Vickers scales, as well as Portable hardness testers
  • Phase II hardness test blocks are made of high grade materials to assure unmatched accuracy and repeatability throughout the entire block.
  • Phase II Hardness test block surfaces are precision ground and lapped to an average finish of less than 2uin.
  • Hardness Test blocks always engineered to obtain highly sensitive and accurate readings.
  • All Made in the USA hardness test blocks conform to current ASTM specifications
  • Traceability to NIST is offered on HRC steel hardness test blocks only.
  • Prestigious Accredited laboratory by A2LA and NVLAP in the USA
hardness-test-block-7

Rockwell Hardness Test Blocks (Steel)

Part No. Description Shape Range Comments
900330-9413 Rockwell A Round 80-88 Phase II std.
900330-9414H Rockwell B Square 85-100 Made in USA
900330-9414C Rockwell B Round 85-100 Phase II std.
900330-9415C Rockwell C Round 20-30’s Phase II std.
900330-9415D Rockwell C Round 20-30’s Phase II NIST certified
900330-9415E Rockwell C Square 20-30’s Made in USA/NIST cert.
900330-9416C Rockwell C Round 40’s-50’s Phase II std.
900330-9416D Rockwell C Round 40’s-50’s Phase II NIST certified
900330-9416E Rockwell C Square 35-55 Made in USA/NIST cert.
900330-9417C Rockwell C Round 60-70 Phase II std.
900330-9417D Rockwell C Round 60-70 Phase II NIST certified
900330-9417E Rockwell C Square 60-70 Made in USA/NIST cert.
900340-9001 Superficial HR15N Round 70-91 Phase II std.
900340-9002 Superficial HR30N Round 42-80 Phase II std.
900340-9003 Superficial HR45N Round 20-70 Phase II std.
900340-9004 Superficial HR45T Round 55-72 Phase II std.
900340-9005 Superficial HR30T Round 70-82 Phase II std.
900340-9006 Superficial HR15T Round 88-93 Phase II std.
900345-1015N-L Superficial HR15N Square Low range Made in USA
900345-1015N-M Superficial HR15N Square Mid range Made in USA
900345-1015N-H Superficial HR15N Square High range Made in USA
900345-1015T-L Superficial HR15N Square Low range Made in USA
900345-1015T-M Superficial HR15N Square Mid range Made in USA
900345-1015T-H Superficial HR15N Square High range Made in USA
900345-1030N-L Superficial HR30N Square Low range Made in USA
900345-1030N-M Superficial HR30N Square Mid range Made in USA
900345-1030N-H Superficial HR30N Square High range Made in USA
900345-1030T-L Superficial HR30T Square Low range Made in USA
900345-1030T-M Superficial HR30T Square Mid range Made in USA
900345-1030T-H Superficial HR30T Square High range Made in USA
900345-1045N-L Superficial HR45N Square Low range Made in USA
900345-1045N-M Superficial HR45N Square Mid range Made in USA
900345-1045N-H Superficial HR45N Square High range Made in USA
900345-1045T-L Superficial HR45T Square Low range Made in USA
900345-1045T-M Superficial HR45T Square Mid range Made in USA
900345-1045T-H Superficial HR45T Square High range Made in USA

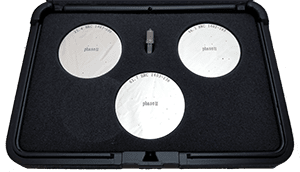

3pc NIST certified test block kit Part No. 900330-9410
3pc set includes HRC blocks w/NIST certification for each block in custom carry case

NIST Master Calibration Kit-C scale Part No. 900330-9410M
Kit includes same HRC test blocks as above as well as a certified diamond indentor in custom carry case

NIST Master Calibration Kit-C/N scale Part No. 900330-9410Z
Kit includes same test blocks as above as well as a certified Combo C&N scale diamond indentor in custom carry case

hardness-test-block-8

Additional information

Weight 2 lbs
Dimensions 4 × 4 × 4 in
Part No.

900330-9413, 900330-9414H, 900330-9414L, 900330-9414C, 900330-9414D, 900330-9415C, 900330-9415D, 900330-9415E, 900330-9416C, 900330-9416D, 900330-9416E, 900330-9417C, 900330-9417D, 900330-9417E, 900340-9001, 900340-9002, 900340-9003, 900340-9004, 900340-9005, 900340-9006, 900345-1015N-L, 900345-1015N-M, 900345-1015N-H, 900345-1015T-L, 900345-1015T-M, 900345-1015T-H, 900345-1030N-L, 900345-1030N-M, 900345-1030N-H, 900345-1030T-L, 900345-1030T-M, 900345-1030T-H, 900345-1045N-L, 900345-1045N-M, 900345-1045N-H, 900345-1045T-L, 900345-1045T-M, 900345-1045T-H, 900330-9410, 900330-9410M, 900330-9410Z
