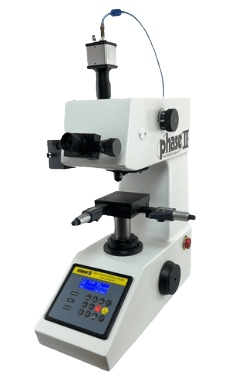

This Micro Vickers hardness tester is a precise testing system suitable for hardness analysis of metallic specimens in metallography laboratories or production environments
w/ Video Cam, Adaptor and Software
This Micro Vickers hardness tester is a precise testing system suitable for hardness analysis of metallic specimens in metallography laboratories or production environments
Our advanced line of Micro Vickers Series hardness testers are state-of-the-art, precise testing systems suitable for hardness analysis of metallic specimens in metallography laboratories or production environments.
The Phase II micro-vickers hardness testers are versatile and user-friendly systems, designed for the accurate hardness testing of small precision parts, thin materials, coatings, wires and case depth determinations.This hardness tester comprises the very best in “state of the art” design along with dynamic precision only found at Phase II. The 900-391 vickers hardness tester is easy to operate, yet engineered to obtain highly sensitive and accurate readings.The Phase II 900-391 Series micro-vickers hardness testers include Auto-Turret, Video Cam, Adapter, USB Output Cable and a choice of 4-variants of hardness Measurement software giving you the capabilities of vickers hardness testers that cost thousands more. The 900-391 Micro Vickers hardness tester covers the load range from 10g to 1kg.
Conforming to ASTM E-384/92 vickers hardness testers standards, the 900-391 series micro vickers hardness testers will offer unmatched repeatability. This micro Vickers hardness tester can also measure Knoop hardness after installing an optional knoop indentor. A perfect rugged performer suited for any environment, the Phase II vickers hardness testers are offered with a 5 year warranty and free lifetime technical support.
Technical Features: Testing Range: 1HV~2967HV
Test Force:
0.098N(10g)、0.246N(25g)、0.49N(50g)、0.98N(100g)
1.96N(200g)、4.90N(500g)、9.80N(1000g)
Max Height of the Specimen: 70mm
Max Distance from the Indenter Center to the Instrument Panel:
95mm
Lens/indenters with: With Hand Turret
Carriage Control: Automatic(loading /holding-up of the
load/unloading)
Amplification of the microscope: 100×,400×
Dwell Time of the Test Force: (5-60)S
Min.Graduation Value of the Testing Drum Wheel: 0.25um
Dimension of the XY Table: 100×100mm
Movement Field of the XY Table: 25×25mm
Light source/Power Supply: 110/220V,60/50Hz/Cold Light Source
Weight/Gross Weight: 41.5kg Net Weight: 35kg
Package Dimensions: 425×245×490mm
Model No. 900-391A
Includes Video cam, adapter and manual measurement software
Model No. 900-391B
Includes Video cam, adapter and Auto-Measurement software
Model No. 900-391C
Includes Video cam, adapter and Turret control w/manual measurement
software
Model No. 900-391D
Includes Video cam, adapter and Turret control w/ Auto-Measurement
softwarePackages A, B & C can be upgraded at any time.
Contact Phase II for further information
Packages C&D only work with Phase II brand and similar
machines
Additional information
Weight
175 lbs
