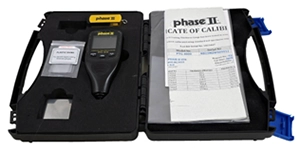

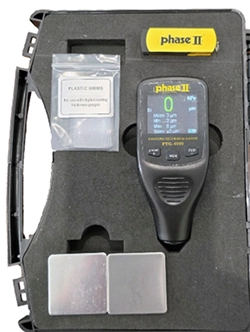

COATING THICKNESS GAUGE Coating thickness measurement with Color Flip Display! The PHASE II PTG-4000 coating thickness gauge can perform two different methods of calculating thickness measurement by utilizing the characteristics of both eddy current and magnetic induction. Coating thickness Testing performance is both non-destructive and extremely accurate. With this state of the art coating thickness gauge, you can easily detect the thickness of nonmagnetic coating thickness on a magnetic substrate (ferrous) or an insulating coating on a non-magnetic conductive substrate (non-ferrous) utilizing our auto-detect, integrated probe The PTG-4000 coating thickness gauge can be used in many areas of industry including automotive auctions, manufacturing, general engineering, commercial inspection, etc.Includes Factory 1 Year Warranty!
Main Technical Data
- Measuring range: 0-1,250 µm max. or 0-50 mils
- Resolution: 1 µm / 0.1mils
- Accuracy: +/- 3% + 2 µm ( +/-3%+0.1 mil )
- Display: 3 digit color LCD
- Statistics: Min/Max, Average, Std Deviation
- Single or Continuous Measurement(Selectable)
- Min. measuring area: 0.2″ x 0.2″ (5mm x 5mm)
- Min. radius of curvature: Convex: 0.12″ (3mm) Concave: 1.2″ (30mm)
- Min. substrate thickness: Ferrous: 20 mils (0.5mm) Non-ferrous: 2 mils (50 µm)
- Max. Surface temperature of test object: 302 degrees F (contact time max is 2 seconds)
- Power source: 2-AAA batteries
- Dimensions: 100 x 52 x 29mm
- Weight: 2.4oz. (w/o Batteries)
