Coating Thickness Gauge ZPT-6/Paint Thickness Meters



The New Z-Rok ZPT-6 can perform two different methods of calculating thickness measurement by utilizing the characteristics of both eddy current and magnetic induction. Testing performance is both non-destructive and extremely accurate. With this state of the art thickness gage, you can easily detect the thickness of nonmagnetic coating on a magnetic substrate (ferrous) or an insulating coating on a non-magnetic conductive substrate (non-ferrous) utilizing our auto-detect probe   The ZPT-6 can be used in many areas of industry including automotive auctions, manufacturing, general engineering, commercial inspection, etc.   Technical parameters
Probe type F/N F/N
Measuring principle Magnetic induction Eddy current
Measuring range 0~1500 um (0-59mil) 0~1500 um (0-59mil)
Resolution (Selectable) 1 um , 0.1 um, .01um 1 um , 0.1 um, .01um
Accuracy Zero calibration ±(2%H+1) um ±(2%H+1) um
Measuring Condition Min. radius of curvature Cx. 1.5 mm Cx. 3 mm
Min. radius of area Φ7 mm Φ5 mm
Critical thickness of plate 0.5 mm 0.3 mm
         Note: H – nominal value of thickness
  • Two measuring modes: single or continuous (Scan mode) (selectable).
  • Automatic Temperature compensation: compensates for the measurement distortion caused by the change of temperature.
  • Displays five statistical values: average(MEAN, maximum(MAX), minimum(MIN), measure number(No.), and standard deviation (S.DEV).
  • Calibration: Simple 1-step calibration using supplied metal plate and reference shims
  • Data storage: close to 500 measurements in memory. (99 measurements/group x 5 groups). Includes data output software and cable
  • Tolerance Setting: alarm when measurements out of tolerance.
  • Battery symbol: Displays remaining power in battery.

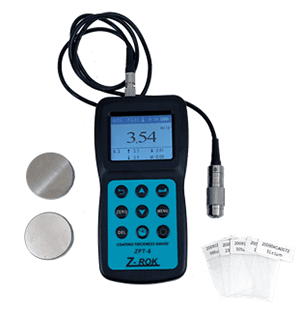

The ZPT-6 utilizes a rugged probe that can automatically detect a Ferrous or Non-Ferrous substrate and comes with 2 substrate samples (steel, aluminum), 4 calibrated thickness samples, carry case, batteries and operation manual.

Additional information

Weight 6 lbs
Dimensions 12 × 6 × 4 in
